Manual Edge Bander Machines

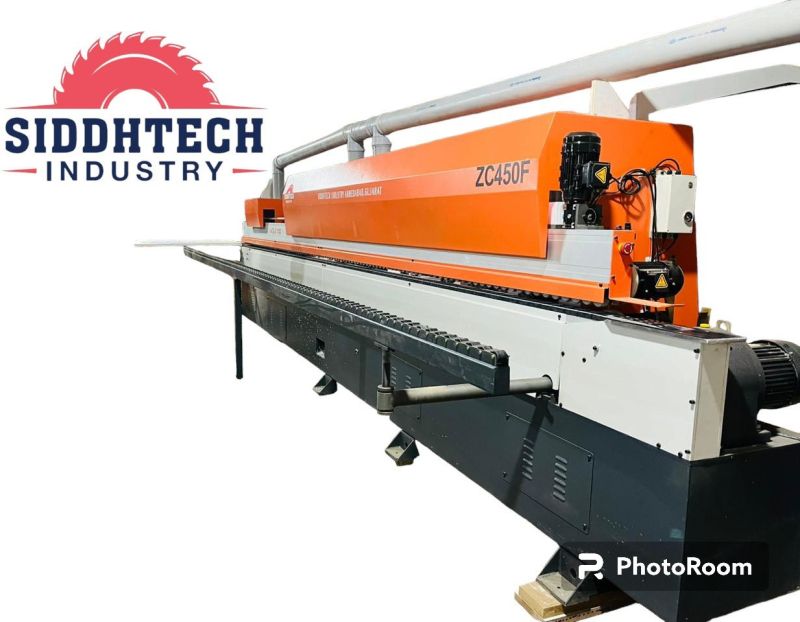

v Gluing--- Edge cut---End Trimming---Fine Trimming----Scraping---Buffing

(With PLC +Touch screen DELTA)

v Delta HMI

v Thickness of the wood: 10-45mm Edge band thickness: 0.4-3mm

v Min width of the wood:≥80mm

v Min length of the wood:≥160mm

v Feeding speed: 13mm/min

v Air pressure: 0.6Mpa

v Power : 380V/50Hz3Phase

v Total Power :8KW

v The glue temperature: 180-200degree

v  Digital millimetre length counter is provided to adjust the length of tape automatically.
v  Easy electronic regulation of variable feed speeds is provided.
v  Digital temperature controller is provided which allows starting the feed motor, Only when glue melts and reached the set temperature.
v  Hard and ground table with hylum surface for smooth movement of work piece.
v  Pre-heating Air Blower provided for thick PVC.
v  Roller extension is provided to support wide jobs.
v  Easy & Quick Changing of drills
v  Pneumatic clamping arrangement
v  Locking system of spindle shaft
v  Rigid and heavy duty frame to holding boring heads
v  Antiwear materials for sliding parts

Features

•  v Machine is light in weight, so it can be used for large size boards where the job is fixed onto a table & machine can be used on it.
• v Useful for small onsite work.
• v Large straight or curved panel custom works.
• v Portable or stationary machine applications.
• v One man manual edge banding operation.
• v Digital Temperature Control
•
• Technical Data:
•
• v Gluing:Double side glue
• v Speed Control:Stepless speed change
• v Edge width 7-60mm
• v Edge thinkness:0-6m/min
• v Overall size:440*410*450mm
• v Glue tank volume:1000ml
• v  Weight: 18KGS

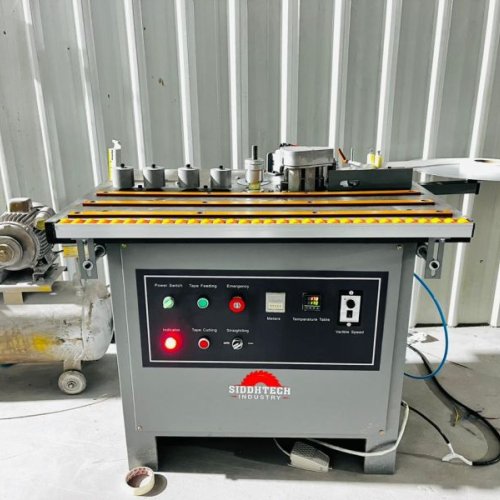

 We Are Manufacturing A Manual Edge Bander Machine.Digital millimetre length counter is provided to adjust the length. Easy electronic regulation of variable feed speeds is provided. Digital temperature controller is provided which allows starting the feed motor, Only when glue melts and reached the set temperature. Hard and ground table with hylum surface for smooth movement of work piece.Pre-heating Air Blower provided for thick PVC. Roller extension is provided to support wide jobs.                    Variable feed speed of edge banding.Swivel bar roller support for big width wor piece.Aluminium glue pot with covering heat insulation material.Foot and micro cutting system for edge cutting.High speed motor equipped with ‘V’ groove tool.45° & Straight pressing unit In Manual Edge Bander Machine.

vDouble side glue

vSpeed Control:Stepless speed change

vEdge width 7-60mm

vEdge thinkness:0-6m/min

vOverall size:440*410*450mm

vGlue tank volume:1000ml

v  Weight: 10 KGS

Specifications following:

v Gluing--- Edge cut---End Trimming---Fine Trimming----Scraping---Buffing
(With PLC +Touch screen DELTA)
v Delta HMI
v Thickness of the wood: 10-45mm Edge band thickness: 0.4-3mm
v Min width of the wood:≥80mm
v Min length of the wood:≥160mm
v Feeding speed: 13mm/min
v Air pressure: 0.6Mpa
v Power : 380V/50Hz3Phase
v Total Power :8KW
v The glue temperature: 180-200degree
