12.50 Lac - 15 Lac / piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor, Importer |
| Brand Name | ACME |
| Finishing | Polished |
| Shape | Rectangular |
| Click to view more | |
Product Details
Color
Grey
Condition
New
Power
3 HP
Country of Origin
India
Model Name/Number
BHP-100T
Automation Grade
Automatic
Number Of Cylinders
6 Nos
Total Pressure
120 Tons
Unit Pressure
3.2 kg/cm2
Hot Platen Size
42 x 1300 x 2500 mm
Effective Working Area
1240 x 2460 mm
Working Layer
1 Layer
Platen Opening
380 mm
HD Platen No
2 Pcs
Installation Power of Liquid Pressure System
4 Kw
Heating Way
Electric heated with thermal oil
Pump Power
0.75 Kw
Heating Power
24 Kw
The Highest Temperature
120 Degree C
Gross Weight
5500 Kg
Salient Features:
v Quick change spindles chucks
v Strengthened frame to hold boring heads
v Oneheadassemblytiltablefrom0-90 degree
v Anti-sliding working table
v Adequate and effective pneumatic clamps
v Turret wheel to regulate drilling depth
v Drill feed can be controlled
v Elegantly designed, electro pneumatic control panel
v Footswitch for convenient operation of them.

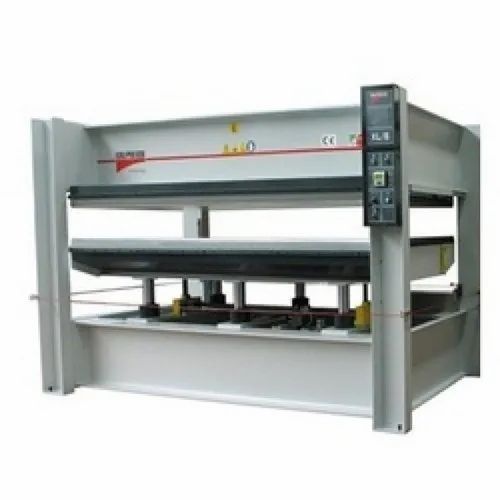

Looking for "Hydraulic Hot Press Machine" ?
