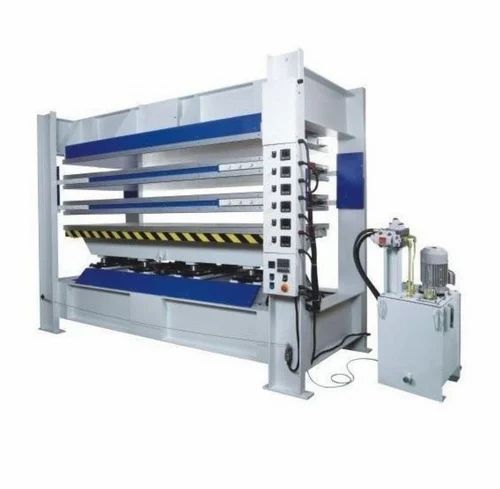

Hot Press Machines
Leading Manufacturers, Exporters, Wholesaler, Retailer, Distributor of Automatic Hot Press Machine and Hydraulic Hot Press Machine from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor, Importer |
| Voltage | 440 V |
| Automatic Grade | Automatic |
| Application | Hot Press Machine |
| Hot Platen Size | 42 x 1300 x 2500 mm |
| Working Layer | 1 Layer |
| Platen Opening | 380 mm |
| Hot Platen No. | 2 pcs |
| Pump Power | 0.75 Kw |
| Heating Power | 24 Kw |
Technical Specification :
|
Description |
Hot Press |
|
Capacity |
102 Ton |
|
No. Layer |
Single Layer |
|
Platen Size |
2500 X 1300 X 42mm +/-0.2 mm |
|
Daylight Gap |
380mm |
|
Nos. Cylinder |
Six (6) |
|
Diameter of RAM |
80 mm |
|
Stroke of RAM |
400 mm |
|
Heating Medium |
Thermic Oil |
|
Hydraulic Power |
5 HP |
|
Heating Power |
18 KW |
|
Circulating Pump Power |
0.75 KW |
|
Total Power Required |
21 KW |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor, Importer |
| Brand Name | ACME |
| Finishing | Polished |
| Shape | Rectangular |
| Color | Grey |
| Condition | New |
| Power | 3 HP |
| Country of Origin | India |
| Model Name/Number | BHP-100T |
| Automation Grade | Automatic |
| Number Of Cylinders | 6 Nos |
| Total Pressure | 120 Tons |
| Unit Pressure | 3.2 kg/cm2 |
| Hot Platen Size | 42 x 1300 x 2500 mm |
| Effective Working Area | 1240 x 2460 mm |
| Working Layer | 1 Layer |
| Platen Opening | 380 mm |
| HD Platen No | 2 Pcs |
| Installation Power of Liquid Pressure System | 4 Kw |
| Heating Way | Electric heated with thermal oil |
| Pump Power | 0.75 Kw |
| Heating Power | 24 Kw |
| The Highest Temperature | 120 Degree C |
| Gross Weight | 5500 Kg |
Salient Features:
v Quick change spindles chucks
v Strengthened frame to hold boring heads
v Oneheadassemblytiltablefrom0-90 degree
v Anti-sliding working table
v Adequate and effective pneumatic clamps
v Turret wheel to regulate drilling depth
v Drill feed can be controlled
v Elegantly designed, electro pneumatic control panel
v Footswitch for convenient operation of them.
