8.75 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor, Importer |
| Brand Name | Siddhtech Industry, Siddhtech Industry |
| Condition | New |
| Automatic Grade | Automatic |
| Click to view more | |
Product Details
Voltage
380V
Type

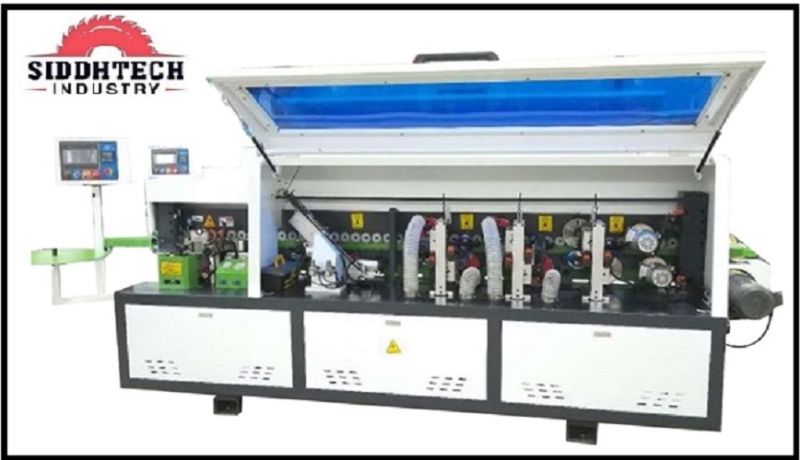

Automatic Edge Banding Machine
Weight
2600 Kg
Warranty
1year
Country of Origin
Made In India
Thickness of the wood
60mm
Edge band thickness
3mm
Min width of the wood
More Than 80 mm
Min length of the wood
More Than 160 mm
Payment Terms
L/C
Delivery Time
5 to 6 Days
Packaging Details
The goods shall be delivered in standard packing.
Wooden crate packing charges will be charged extra.
Wooden crate packing charges will be charged extra.
Specifications following:
v Gluing--- Edge cut---End Trimming---Fine Trimming----Scraping---Buffing
(With PLC +Touch screen DELTA)
v Delta HMI
v Thickness of the wood: 10-45mm Edge band thickness: 0.4-3mm
v Min width of the wood:≥80mm
v Min length of the wood:≥160mm
v Feeding speed: 13mm/min
v Air pressure: 0.6Mpa
v Power : 380V/50Hz3Phase
v Total Power :8KW
v The glue temperature: 180-200degree
